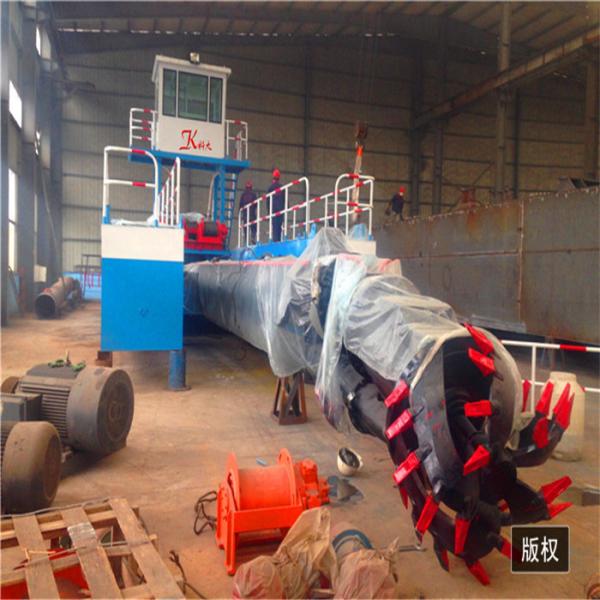

Cutter Suction Dredger
DescriptionHD-CSD series dredgers can be applied to many kinds of geologic
structures and can be widely used in mineral digging, port dredging
and reclamation works. This series of dredgers show their
characteristics of rational design, all hydraulic driven, simple
operation, little maintenance and strong power. The products have many series with dredging capacity from 500m3/ h to 10000m3/ h, which can satisfy different work demands.| Basic CSD Parameter |
| Model | KDCSD200 | KDCSD260 | KDCSD300 | KDCSD350 | KDCSD400 | KDCSD450 | KDCSD500 |
| Dredger Body | | | | | | | |
| Dimensions(L*W*H)m | 12.5*4.6*1.3 | 12.5*5.8*1.6 | 14.5*5.8*1.8 | 14.5*5.8*1.8 | 22*6.4*2 | 26*7*2 | 26*7.1*2.2 |
| Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 | 9*3.2*1.8 | 9.5*3.2*1.8 | 12*3.4*2 | 14*3.4*2 | 14*3.5*2.2 |
| Dredging data | | | | | | | |
| Standard dredging depth | 6-7m | 6-8m | 8-10m | 10-12m | 12-14m | 12-14m | 12-14m |
| Pump model | 8/6” | 10/8” | 12/10” | 12/10” | 14/12” | 14/12” | 450WN |
| Water flow | 450m3/h | 800m3/h | 1100m3/h | 1500m3/h | 1900m3/h | 2500m3/h | 3200m3/h |
| Suction pipeline diameter(mm/inch) | 260 | 300 | 350 | 350 | 400 | 450 | 500 |
| Discharge pipeline diameter(mm/inch) | 200 | 260 | 300 | 350 | 400 | 450 | 500 |
| Devices | | | | | | | |
| Total power KW | 176kw | 258kw | 353kw | 480kw | 640kw | 930kw | 1200kw |
| Generator set(kw) | 24 | 24 | 24 | 24 | 24 | 36 | 36 |
| Cutter head | | | | | | | |
| Diameter (mm) | 850-30 | 950-40 | 1100-50 | 1200-80 | 1300-110 | 1500-120 | 1700-140 |
| Winch(hydraulic) | | | | | | | |
| Ladder winches | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-10000 | JC-12000 |
| Swing winch | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-8000 | JC-10000 |
| Spuds | | | | | | | |
| Quantity | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Spuds length*diameter(mm) | 8600*273 | 11000*300 | 13000*350 | 15000*377 | 17000*450 | 17000*550 | 17000*600 |
| Spuds weight/pic | 900kg | 1500kg | 2000kg | 2500kg | 3900kg | 4500kg | 5000kg
|
We also can supply other configurations upon customer’s request.
For the solution or quotation, please inform us:
1. the required work capacity of water flow
2. the max. dredging depth
3. the discharge distance
Main Features
- Dismountable design
- Heavy duty robust design
- Large range of options are available to customize the CSD
- Operation with high efficient cutter head with special patented
cutter teeth of highest wear resistance
- Operation with high efficiency dredge pump with optimized suction
performance
- Operation with approved dredge control/monitoring system,
automation of dredging process
Spare Parts
Packing & Delivery
Packaging Details: standard package for exportPort: QingdaoDelivery Time: within 5 days after receiving all the money
Company Introduction It is a company specialized in manufacturing dredgers, aquatic weed
harvesters, gold mining machines and greenhouses.aims to meet the needs of our customers by providing competitive and high-quality services , such as dredging technology, water cleaning, mineral
separation, etc.
The products have many series, such as dredging equipment of large
magnitude from 500m3 / h to 10000m3 / h, sand extraction equipment, gold panning ship, multifunctional service work boat, protection boat, etc. These are
widely used in sand excavation, river dredging, canal maintenance
and expansion, silt removal, land reclamation, port construction,
river cleaning, etc. We can also customize products according to
the requirements of our customers.
Focuses on leadership, services, cost, safety and efficiency of
products, which allows us to continue to dedicate ourselves to
heavy industry. With advanced technology, stable and reliable
quality, as well as excellent after-sales services, has obtained praise from domestic and foreign customers.
Production Line
CaseProject 1. Project 2.
Dredger Model: HD-CSD150 Dredger Model: HD-CSD450
Export Country: Congo Export Country: Bangladesh
Year of Built: 2017 Year of Built: 2015
Application: Dredging Sand from Local River Application: Dredging
Port
Water Flow: 500m3/h Water Flow: 3500m3/h
Dredging Depth: 10m Dredging Depth: 15m
Discharge Distance: 500m Discharge Distance: 1500m
Our Certificates
Others Products
FAQ
1. How to assemble the machine
Our technicians are responsible for installing the machine in the
field. We also offer training services
2. After-sales service
If there are any problems during the operation of the machine in
the warranty period, we will exchange parts for free. All kinds of
questions are available after the purchase, please fell free to contact us.
