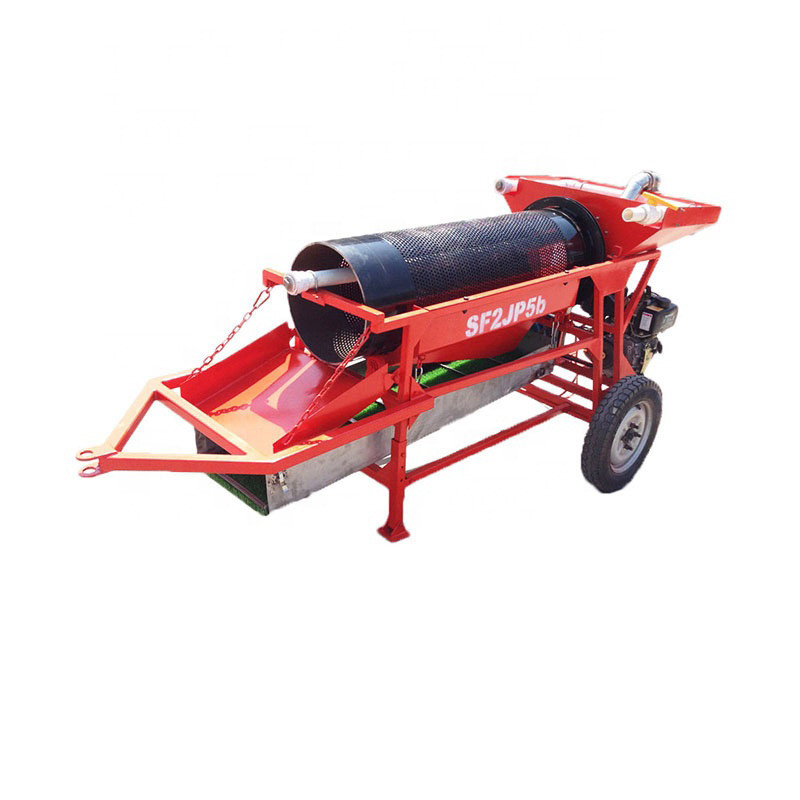

    8mm Mesh Mini Trommel Screen Small Gold Wash Plant Belt Driven 10t/H

    Ask Lasest Price
    Brand Name : KEDA
    Model Number : KDTJ-10
    Price : USD8000/SET
    Payment Terms : L/C, T/T
    Supply Ability : 1000SET per year
    Delivery Time : 15days
    • Product Details
    • Company Profile

    8mm Mesh Mini Trommel Screen Small Gold Wash Plant Belt Driven 10t/H

    Mini Trommel Screen Small Gold Wash Plant Portable Gold Washing Plant Machine Good Price

    1.Description

    1). Portable placer mining plant 's widely used for portable gold rush plant
    2). Easy to move,because of the small volume.
    3). Feeding by manual.
    4). High capacity and high power scrubbing, large capacity can reach 200-220tons per hour
    5). The long drum of the scrubber retains material for longer, more vigorous washing for complete separation
    6). One high output electrical motor driving a gear system providing efficient torque
    7). Adjustable rotary speed
    8). The water with high pressure flushed the inwall of drum
    9). Can accept material up to 230mm
    10). Mechanical sealing of inlet chute - minimal spillage when over feeding
    11). Drive loads absorbed within the drive frame and pivoting drive frame design - Foundations only have to support vertical load and are not critical for alignment ie minimal cost
    12). Shell design less mass than conventional roller supported units - installation craneage requirement reduced

    8mm Mesh Mini Trommel Screen Small Gold Wash Plant Belt Driven 10t/H


    2. Information

    ModelKDTJ-10 Gold TrommelKDTJ-5 Gold Trommel
    Machine size(mm)2900 *1200*15002800*1350* 1150
    Processing capacity5-10t/h1-5t/h
    Screen
    Screen size (mm)530(Dia.)*1800(Length)400(Dia.)*1300(Length)
    Mesh8mm8mm
    Driven typeby beltby belt
    Diesel enginePortable Diesel EnginePortable Diesel Engine

    with CE Certificatewith CE Certificate
    Oil Tank2.5L2.5L
    Feeder hopper(mm)1200*8101066*568
    Gold Felt
    rough gold felt(mm)2000*600(1pc)1500*400(1pc)
    fine gold felt(mm)2000*600(1pc)1500*400(1pc)
    Water pump2inch with water pipe2inch with water pipe
