ITEM | HD-WH40 | HD-WH60 | HD-WH100 | HD-WH150 |
1. Draught (m) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.5-0.7 |
2.Harvesting width(m) | 1.0-1.5 | 1.0-1.2 | 1.2-1.5 | 1.5-2.0 |
3.Loading capacity(m³) | 1-5 | 3-5 | 8-12 | 15-26 |
4.Speed work(km/h) | 2-4 | 2-4 | 2-8 | 2-8 |
5.Harvesting depth(m) | 0.6 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
6. size Main collecting arm (m) | 4*1.2-1.7*1.4 | 4*1.2-1.4*1.4 | 5.5*1.2-1.7*1.4 | 6*1.7-2.6*1.4 |
7.Harvested area (m2) | 1000 | 2000 | 3000 | 5000 |
8. Total weight (T) | 5-6 | 6-8 | 8-10 | 18-30 |

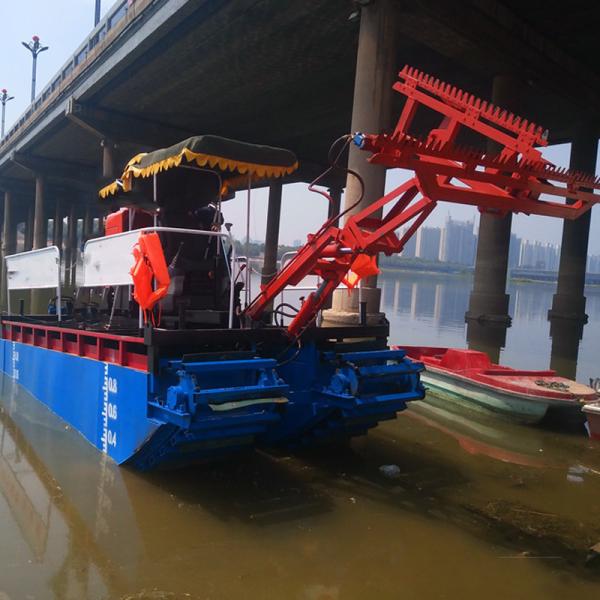

1.The equipment can used in collect,transport,discharge water
hyacinth,reed,algae and garbage in the water.
2.the operation system use full automatic centralized control, this
can make the equipmend sail and go forward and back.
3.the equipment can be adjust the direction and do the unloading
work by one person.this kind of dredger is famous for it
simple structure,flucxible movement and easy operation.
4.the machine is made is welding steel,the material is CCSB(China
Classification Society Standard) ship steel plates,the
equipment pained 4 layersof anti-rust marine paint.
5.the opearion system uses remote centralized control, this can
make the equipment sail,go forward and back,adjust direction
and do the loading work.
Our Company
Head Dredging Heavy Industry Co., Ltd. is a company specialized in
producing dredgers, aquatic weed harvesters, gold mining machines
and greenhouses. Head Dredging aims to meet the needs of our
customers by providing competitive and high-quality services, such
as dredging technology, water cleaning, mineral separation,
etc.This product have many series, such as aquatic weed harvester,
trash skimmer/hunter, transportation boat and other water
surfaceproducts.Our company take integrity as the foundation of the
development and stand firmly in the market by accurate market
positioning as
well as excellent after-sales service. Our products are
successfully exported to Indonesia, Malaysia, India, South Africa,
Ethiopia, Vietnam, Mongolia, etc.
