ITEM | HD-WH40 | HD-WH60 | HD-WH100 | HD-WH150 |
1. Draught (m) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.5-0.7 |
2.Harvesting width(m) | 1.0-1.5 | 1.0-1.2 | 1.2-1.5 | 1.5-2.0 |
3.Loading capacity(m³) | 1-5 | 3-5 | 8-12 | 15-26 |
4.Speed work(km/h) | 2-4 | 2-4 | 2-8 | 2-8 |
5.Harvesting depth(m) | 0.6 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
6. size Main collecting arm (m) | 4*1.2-1.7*1.4 | 4*1.2-1.4*1.4 | 5.5*1.2-1.7*1.4 | 6*1.7-2.6*1.4 |
7.Harvested area (m2) | 1000 | 2000 | 3000 | 5000 |
8. Total weight (T) | 5-6 | 6-8 | 8-10 | 18-30 |

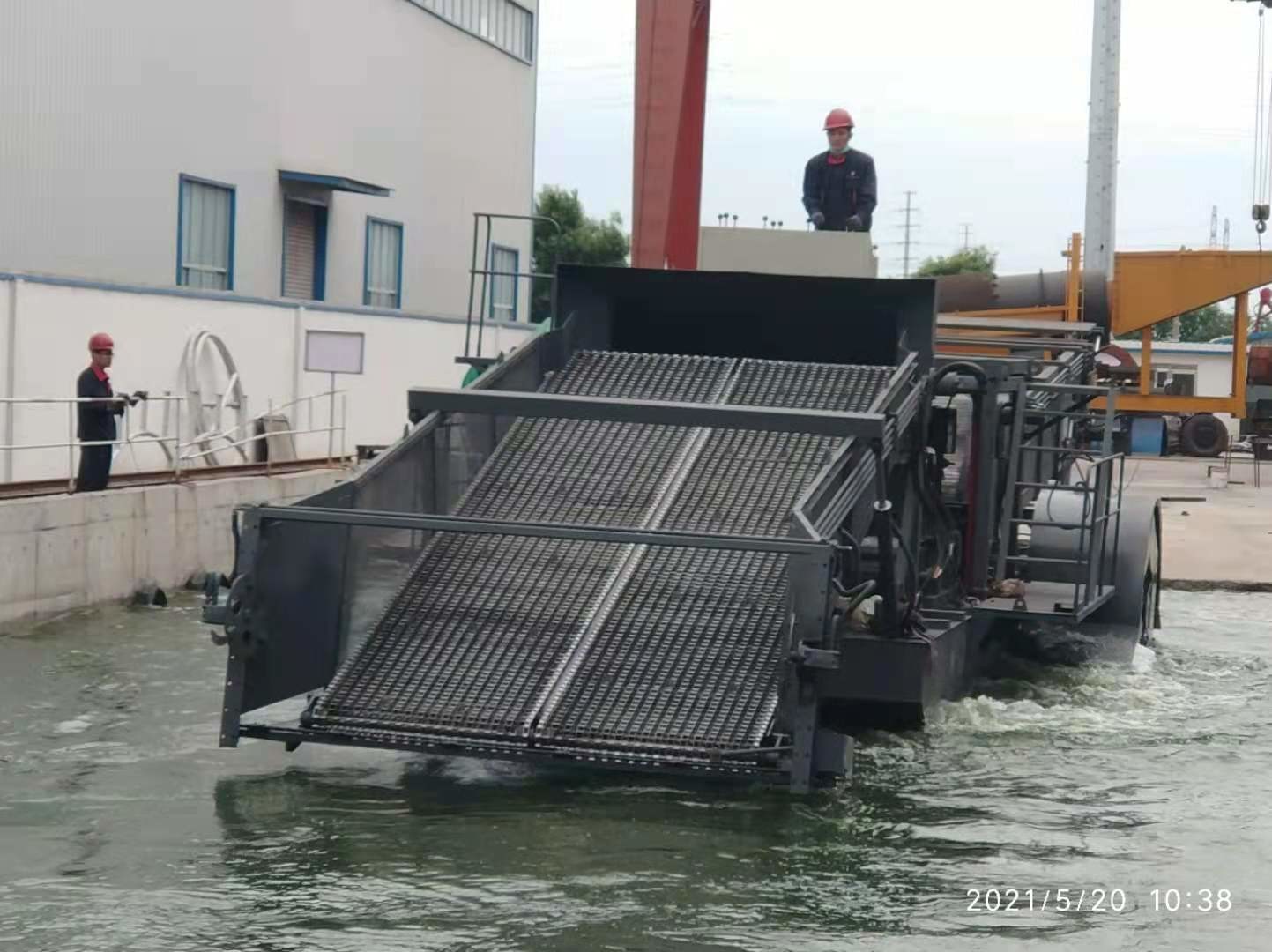

1.The equipment can used in collect,transport,discharge water
hyacinth,reed,algae and garbage in the water.
2.the operation system use full automatic centralized control, this
can make the equipmend sail and go forward and back.
3.the equipment can be adjust the direction and do the unloading
work by one person.this kind of dredger is famous for it
simple structure,flucxible movement and easy operation.
4.the machine is made is welding steel,the material is CCSB(China
Classification Society Standard) ship steel plates,the
equipment pained 4 layersof anti-rust marine paint.
5.the opearion system uses remote centralized control, this can
make the equipment sail,go forward and back,adjust direction
and do the loading work.
Our Company
Head Dredging Heavy Industry company is professional in
manufacturing the dredgers, weed harvesters, mining machinery. All
the products can be customized according to client’s requirements
and formed a complete ship machinery industry chain. Head dredging
products are exported to more than 40 countries, such as
Bangladesh, Brazil, Nigeria, Indonesia, Philippine, etc. Under
advance technology, stable and reliable quality, good
after-service, Head dredging has obtained the honors from the
domestic and abroad customers.
