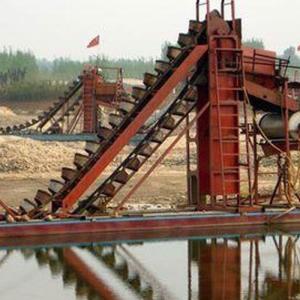

Bucket Chain Dredger Mining Machine For Gold And Diamond Dredging
In River
General description of bucket chain dredger mining machine
A bucket dredger is equipped with a bucket dredge, which is a
device that picks up sediment by mechanical means, often with many
circulating buckets attached to a wheel or chain.’
Bucket Chain Gold Dredger is advanced mining joint equipment. It
has many advantages, such as, advanced technology, reasonable
structure, reliable performance and easy to operation and maintain
and so on. As the result of many years test, that's proving: Using
this series gold dredger has advantages of high degree of
mechanization, large output, less investment and more profit.
Features of the bucket chain dredger mining machine :
1. Good quality guaranteed. Every step of the producing is strictly
supervised. Certified by ISO9001.
2. Wide application. Can be used in river, seaside etc for small
scale alluvial/placer gold dredging.
3. Good after sales service. Overseas service for installation and
debugging and problem consult.
4. Customized. Can be produced according to customers' requirement,
such as the color and so on.
Parameters of the bucket chain dredger mining machine
| SPECIFICATIONS |
|
| NO. | Item | Description |
| 1 | General Specifications | |
| Max.Working Capacity | 200m3/h |
| Max.Dredging Depth | 12m |
| Total working power | 162kw |
| Water consumption | 500m3/h |
| Max. Dredging size | 500mm |
| 2 | Dredge body | |
| 2.1 | Dimension | |
| Length | 25m |
| Width | 2.5m |
| High | 1.12m |
| 2.2 | Material | |
| Bottom plate material | 6mmQ235 |
| Side plate material | 5mmQ235 |
| Deck | 4mmQ235 anti-skid plate |
| Framework | 63*4 angle iron and 12#U steel |
| Surface treatment | Multi-layer anti-corrosion paint on the surface of hull |
| 3 | Dredging device | |
| 3.1 | Crane Span Structure | |
| Main Structure | 1500x1200x5500mm, 16# channel steel |
| Conveying arm on water | 7700x1600x600mm, 12# channel steel |
| Conveying arm under water | 17000x1500x850mm, 20,12# channel steel |
| 3.2 | Bucket | |
| Quantity | 60sets |
| Volume | 0.15m3/set |
| Dimension | 850x600x400mm |
| 3.3 | Chain | |
| Quantity | 120sets |
| Dimension | 900mm(H)*120mm(W)*35mm(Thickness) |
| Material | High manganese steel casting |
| Pin for Chain | 120mm*40mm*Dia. High Mn Steel |
| 3.4 | Driving wheel(under water) | |
| Dimension | 1100x1300mm |
| Shaft diameter | 190mm |
| Thickness | 25mm |
| Lifter wheel(upon water) | |
| Dimension | 1100x1300mm |
| Shaft diameter | 150mm |
| Reduction box | JZQ1000 |
| Power | YC4A100Z 70KW |
