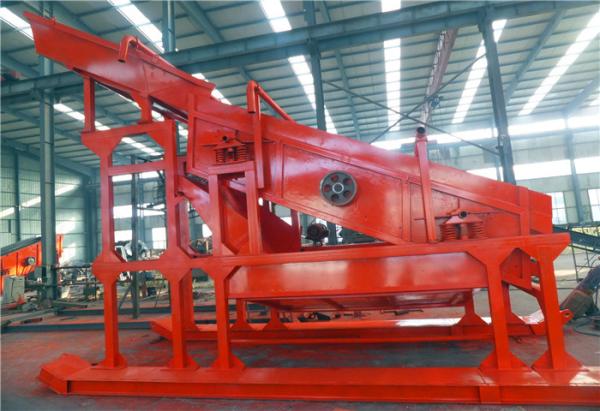

Mineral Separator 120t/H Double Deck Vibrating Screen Machine
Mining Equipment Gold Mining Machine For Ore
The vibrating screens (vibratory screeners/vibrating screens)are
used for sizing different types of products. They are also used as
safety device to prevent contamination of products. It is used to
filter the ore as gold mining machine and industrial minerales.
This machine uses double-layer vibrating screens to separate
mineral particles, and the gold mining chute adopts two-stage gold
felt, which has a strong grasping ability for fine particles of
gold. Special hydraulic conduit disposed in an upper felt gold,
gold may be an effective solution to the felt in a fixed blocking
phenomenon. The base of the equipment is designed like a sled,
which is convenient for dragging and moving the equipment in
complex mining areas.
Structure of Vibrating screen machine/vibratory screeners
Mainly by the screen box, shaker, the suspension (or supporting)
devices and electric motors and other components. The motor drives
the main shaft of the exciter to rotate through the V-belt. Due to
the centrifugal inertia force of the unbalanced weight on the
exciter, the screen box is vibrated. By changing the eccentric
weight of the exciter, different amplitudes can be obtained.Single, double, and triple deck configurations allow for the
ultimate in-process flexibility.
Product parameter of Vibrating screen machine/vibratory screeners
| ITEM | DATA |
| Processing capacity | 80-120t/h |
| Maximum passing particle size | 400mm |
| Loa(L*W*H) | 6200*2000*4500mm |
| Vibrating screen size (L*W*H) | 3800*1500*1500mm |
| Maximum feed particles | 300mm |
| Number of layers | 2 |
| Aperture of upper sieve | 20mm |
| Lower sieve aperture | 8mm |
| Vibration frequency | 960f/min |
| Power | 18.5kw |
Areas of application of vibrating screening machine/vibratory screeners
1,Hard screening tasks in all weather conditions
2,Damp, wet and dry screening
3,Screening of building materials, industrial minerals, salts
4,Screening technology for coal and steel industry
5,Screening of ores
