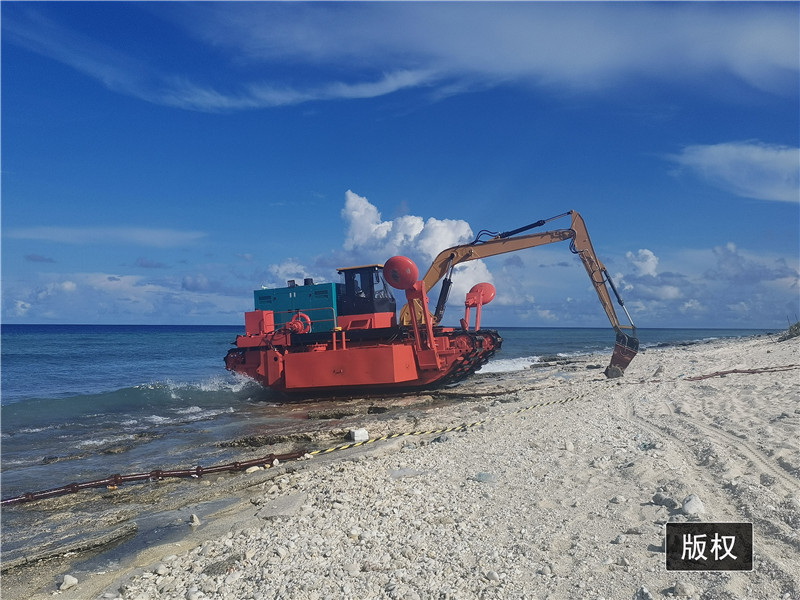

Low Price China Amphibious Multi-Function Dredger Cutter Suction
Sand Dredging Equipment
(1) Wide application, can be in the closed, narrow, shallow waters,
serious pollution of cutter suction, mining, grab, pilling,
weeding, the wrecker and the other multi-function operation.
(2) Strong mobility, without using a crane auxiliary can be up and
down trailer and in-out water, water propeller self navigation,
using front and rear stabilizers to anchor itself to the bottom.
(3) High automation, skilled personal excavator operation a little
training can be the whole machine single operation. (4) Low
consumption, the application of the mud pump reamer compound
equipment under water to have a higher discharge slurry on
centration. Unit earthwork significantly lower fuel consumption
than the traditional cabin mud pump dredger.
item | value |
Size | 11m*3.3m*3.1m |
Weight | 20 Ton |
Engine | Cummins Made in China |
Cooling type | Turbocharged and inter-cooled |
Power | 194 KW (260hp) |
Rotation speed | 2200r/min |
Fuel Tank | 2000L |
Electric system | 24V |
Hydraulic System | Rexroth series Made in China |
Axial piston pump A | For dredge pump and propeller |
Max operating pressure | 25MPa |
Excavator Swinging angle | 180° |
Excavator Bucket cylinder force | 80kn |
Excavator Lifting capacity at max reach | 22kn |
Excavator Lifting capacity with powder lift at max reach | 25kn |
Front Stabilizer, max depth | 5m |
Our Company
Head Dredging Heavy Industry Co., Ltd. is a company specialized in
producing dredgers, aquatic weed harvesters, gold mining machines
and greenhouses. Head Dredging aims to meet the needs of our
customers by providing competitive and high-quality services, such
as dredging technology, water cleaning, mineral separation,
etc.This product have many series, such as aquatic weed harvester,
trash skimmer/hunter, transportation boat and other water
surfaceproducts.Our company take integrity as the foundation of the
development and stand firmly in the market by accurate market
positioning as well as excellent after-sales service. Our products
are successfully exported to Indonesia, Malaysia, India, South
Africa, Ethiopia, Vietnam, Mongolia, etc.
FAQ
1.When we purchase a dredge , will we receive operator training
from you?
We provides training on each dredge when it is delivered and
commissioned. Additionally, customers will receive classroom
training, as well as dredge simulator training.
2.What depth can your dredges reach?
Our standard cutter suction dredge's digging depths range from our
smallest at 20′ (6 m) up to 58′ (18 m). For special
applications, digging depths can be increased substantially.
3.Would a dredge with a larger engine consume more fuel?
Not necessarily. Fuel consumption depends primarily on the
parameters of the dredging operation, such as the material density,
pumping distance, and terminal elevation.
