Gold Dredger Machine 500m3/H 10 Inch Mining Dredger 15m

Ask Lasest Price
Brand Name :	keda
Model Number :	CSD-200
Certification :	ISO9001
Price :	USD60000-200000/UNIT
Payment Terms :	L/C, T/T
Supply Ability :	100/year
Delivery Time :	60days

Add to Cart

Product Details
Company Profile

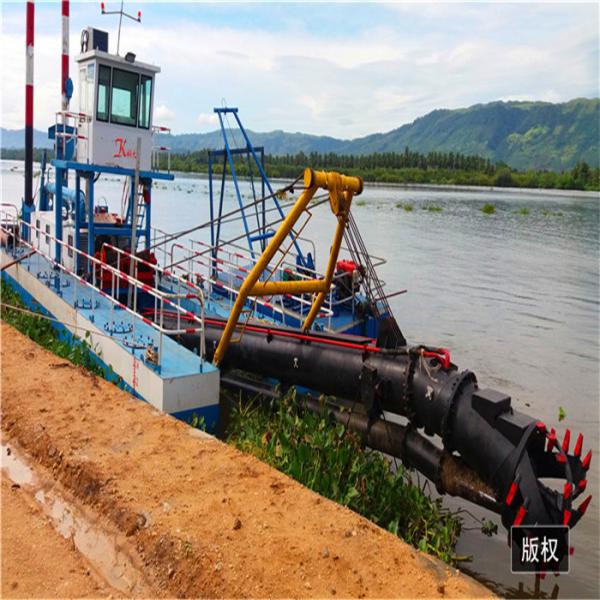

Gold Dredger Machine 500m3/H 10 Inch Mining Dredger 15m

keda GOLD DREDGER MACHINE 15m Digging Depth 10 INCH MINING DREDGER

Cutter Suction Dredger

1) Product Description

HD-CSD series dredgers can be applied to many kinds of geologic structures and can be widely used in mineral digging, port dredging and reclamation works. This series of dredgers show their characteristics of rational design, all hydraulic driven, simple operation, little maintenance and strong power. The products have many series with dredging capacity from 500m³/ h to 10000m³/ h, which can satisfy different work demands.

2) Technical Specifications

Basic CSD Parameter
Model	KDCSD200	KDCSD260	KDCSD300	KDCSD350	KDCSD400	KDCSD450	KDCSD500
Dredger Body
Dimensions(LWH)m	12.54.61.3	12.55.81.6	14.55.81.8	14.55.81.8	226.42	2672	267.12.2
Engine room(m)	7.52.251.4	82.81.6	93.21.8	9.53.21.8	123.42	143.42	143.52.2
Dredging data
Standard dredging depth	6-7m	6-8m	8-10m	10-12m	12-14m	12-14m	12-14m
Pump model	8/6”	10/8”	12/10”	12/10”	14/12”	14/12”	450WN
Water flow	450m3/h	800m3/h	1100m3/h	1500m3/h	1900m3/h	2500m3/h	3200m3/h
Suction pipeline diameter(mm/inch)	260	300	350	350	400	450	500
Discharge pipeline diameter(mm/inch)	200	260	300	350	400	450	500
Devices
Total power KW	176kw	258kw	353kw	480kw	640kw	930kw	1200kw
Generator set(kw)	24	24	24	24	24	36	36
Cutter head
Diameter (mm)	850-30	950-40	1100-50	1200-80	1300-110	1500-120	1700-140
Winch(hydraulic)
Ladder winches	JC-3000	JC-4000	JC-4000	JC-6000	JC-6000	JC-10000	JC-12000
Swing winch	JC-3000	JC-4000	JC-4000	JC-6000	JC-6000	JC-8000	JC-10000
Spuds
Quantity	2	2	2	2	2	2	2
Spuds length*diameter(mm)	8600*273	11000*300	13000*350	15000*377	17000*450	17000*550	17000*600
Spuds weight/pic	900kg	1500kg	2000kg	2500kg	3900kg	4500kg	5000kg

3) Main Features

Dismountable design
Heavy duty robust design
Large range of options are available to customize the CSD
Operation with high efficient cutter head with special patented cutter teeth of highest wear resistance
Operation with high efficiency dredge pump with optimized suction performance
Operation with approved dredge control/monitoring system, automation of dredging process

4)Spare Parts

5) Packing & Delivery

Packaging Details: standard package for export
Port: Qingdao
Delivery Time: within 5 days after receiving all the money
Gold Dredger Machine 500m3/H 10 Inch Mining Dredger 15m

Gold Dredger Machine 500m3/H 10 Inch Mining Dredger 15m

6) Company Introduction

It is a company specialized in manufacturing dredgers, aquatic weed harvesters, gold mining machines and greenhouses.aims to meet the needs of our customers by providing competitive and high-quality services , such as dredging technology, water cleaning, mineral separation, etc.
The products have many series, such as dredging equipment of large magnitude from 500m³ / h to 10000m³ / h, sand extraction equipment, gold panning ship, multifunctional service work boat, protection boat, etc. These are widely used in sand excavation, river dredging, canal maintenance and expansion, silt removal, land reclamation, port construction, river cleaning, etc. We can also customize products according to the requirements of our customers.
Focuses on leadership, services, cost, safety and efficiency of products, which allows us to continue to dedicate ourselves to heavy industry. With advanced technology, stable and reliable quality, as well as excellent after-sales services, has obtained praise from domestic and foreign customers.

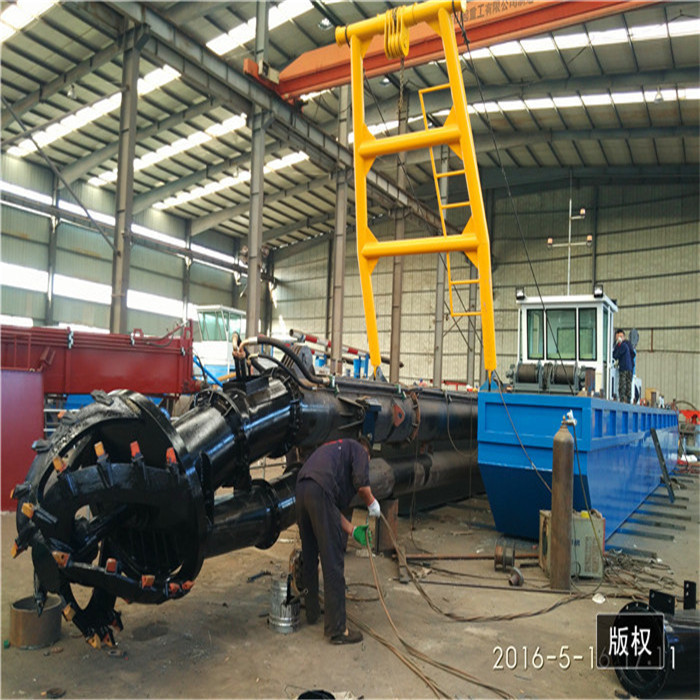

7) Work Shop
Gold Dredger Machine 500m3/H 10 Inch Mining Dredger 15m

8) Production Line

9) Case

Project 1. Project 2.
Dredger Model: HD-CSD150 Dredger Model: HD-CSD450
Export Country: Congo Export Country: Bangladesh
Year of Built: 2017 Year of Built: 2015
Application: Dredging Sand from Local River Application: Dredging Port
Water Flow: 500m³/h Water Flow: 3500m³/h
Dredging Depth: 10m Dredging Depth: 15m
Discharge Distance: 500m Discharge Distance: 1500m

Project 3. Project 4.
Dredger Model: HD-CSD150 Dredger Model: HD-CSD350
Export Country: Fiji Export Country: Nigeria
Year of Built: 2014 Year of Built: 2015
Application: Dredging River Application: Dredging River
Water Flow: 500m³/h Water Flow: 2500m³/h
Dredging Depth: 8m Dredging Depth: 12m
Discharge Distance: 500m Discharge Distance: 1000m
Gold Dredger Machine 500m3/H 10 Inch Mining Dredger 15m

Project 5. Project 6.
Dredger Model: HD-CSD250 Dredger Model: HD-CSD250
Export Country: Uganda Export Country: Philippines
Year of Built: 2016 Year of Built: 2016
Application: Dredging the Lake Application: Dredging River
Water Flow: 1200m³/h Water Flow: 1100m³/h
Dredging Depth: 8m Dredging Depth: 8m
Discharge Distance: 800m Discharge Distance: 800m

10) Our Certificates

11) Others Products

Gold Dredger Machine 500m3/H 10 Inch Mining Dredger 15m

12) FAQ

1. How to assemble the machine
Our technicians are responsible for installing the machine in the field. We also offer training services

2. After-sales service
If there are any problems during the operation of the machine in the warranty period, we will exchange parts for free. All kinds of questions are available after the purchase, please fell free to contact us.
