    River Portable 7hp Small Gold Dredge Water Flow 35m3/H Mini With Highbanker

    Ask Lasest Price
    Brand Name : keda
    Model Number : Mini gold dredger
    Certification : ISO9000
    Price : USD3900.00 Per unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 unit per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

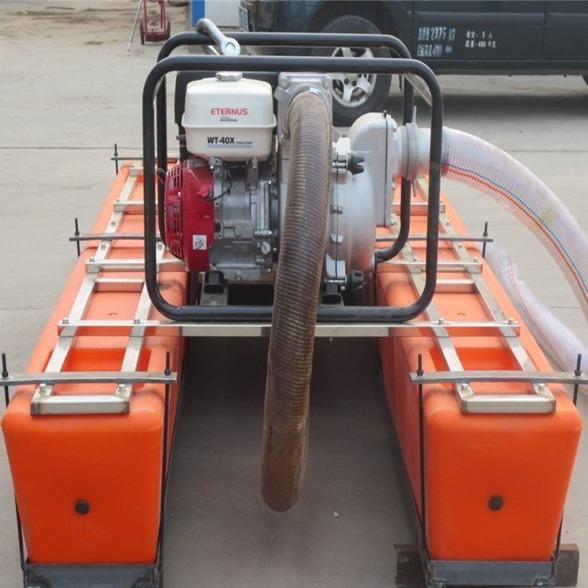

    River Portable 7hp Small Gold Dredge Water Flow 35m3/H Mini With Highbanker

    Keda orange Small Gold Dredge water flow capacity 35m3/h mini type 7hp model portable with highbanker for river use


    parameters for mini portable gold dredger in Stram or river for gold washing

    1. Usage Honda(Japan) engine and pump with CE , ISO Certification.

    2. Very popular in small scale gold mining with advantage that less investment, quick economic returns, simple operation, portable etc.

    3. Hot-selling in both domestic and overseas.

    River Portable 7hp Small Gold Dredge Water Flow 35m3/H Mini With Highbanker


    Model2inch3 inch4 inch6 inch (3+3)
    Engine power5hp@3600rpm13hp@3600rpm15hp@3600rpm13hp@3600rpm
    Fuel284g/kw.h270-277389-429270-277
    Tank2.65L5L6L5L
    Pump size550*450*450660*500*520660*500*520660*500*520
    Pipe line50mm80mm100mm80mm
    Pump head20m27m25m27m
    Suction depth(pipe)0.5-1.2m0.5-3m0.5-3m0.5-6m
    Work capacity1-7m3/h5-12m3/h8-17m3/h5-24m3/h
    Sluice boxStainlessStainlessStainlessStainless
    Sluice box size500*1700600*2000600*2000600*1800
    Plastic pontoon

    1600*395*370

    *2pcs

    1600*395*370

    *4pcs

    1600*395*370

    *4pcs

    2400*570*400

    *2pcs

    NozzleYZ3-2YZ3YZ4YZ3
    Suction pipe3 inch3 inch4 inch3 inch
    Packing volume4cbm5cbm6cbm9cbm
    Price
    Free spare

    Filter head*1pc

    Pipe clamps 6pcs


    Filter head*2pc

    Pipe clamps 12pcs




    River Portable 7hp Small Gold Dredge Water Flow 35m3/H Mini With Highbanker

    ItemsQFT3-2QFT3QFT4
    Dimension(mm)2300*1500*1000mm3200*1500*1000mm3200*1500*1000mm
    PowerSingle-cylinder air-cooled gasoline engineSingle-cylinder air-cooled gasoline engineSingle-cylinder air-cooled gasoline engine
    Power(hp)51315
    Rotate speed3600rpm3600rpm3600rpm
    Oil tank capacity2.65L5L6L
    PumpHondaHondaHonda
    Dimension(H*W*H)mm550*450*450mm660*500*520mm660*500*520mm
    Inlet/Outlet dia.50mm(2inch)80mm(3inch)100mm(4inch)
    Water flow33m³/h60m³/h80m³/h
    Lift head20m27m25m
    Max.dredging depth0.5-1.2m0.5-3m0.5-3m
    Working capacity1-7m³/h5-12m³/h8-17m³/h
    Gold chute with gold carpet
    MaterialStainless steelStainless steelStainless steel
    Dimension(H*W)500*1700mm600*2000mm600*2000mm
    Float
    Dimension(H*W*H)1600*395*370mm1600*395*370mm1600*395*370mm
    Float No.224
    Power JetYZ3-2YZ3YZ4
    Handed Suction hose3inch3inch4inch
    PackagePlywood with iron framePlywood with iron framePlywood with iron frame
    Packaging capacity4M³5M³6M³

    River Portable 7hp Small Gold Dredge Water Flow 35m3/H Mini With Highbanker

    ItemDescription
    Filter head1pc
    Pipe clamp1set(6pcs)
    Pipe

    14meters

    (2m for suction, 6m for water jet, 6m for sand suction)

    Gold carpet1pc
