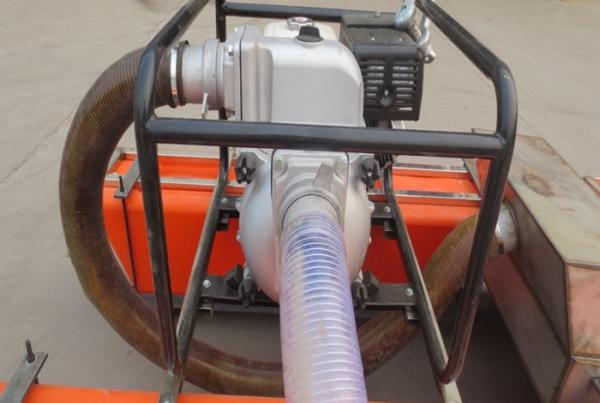

4 inch Jet dredger for gold mining washing in river
Gold Suction Dredge Introduction:
1)Mini gold dredger with a gold chute for high recovery rate,
powered by a famous engine with pump, float is made up of high
strength and light weight plastic.
2)There are advantages that small in size, easy to transportation ,
it is widely used for working of gold mining in mini river channel.
3)Gold suction dredge come in a wide variety of designe and size of
intake.The size from a small backpack size intake from 3 inch to 5
inch.
Feature of Gold Suction Dredge :
1)ISO9001:2008 Certification,high working capacity: 15m³/h
2)It is widely used for working of gold mining in mini river
channel.
3). Mini gold dredger with a gold chute for high recovery rate,
powered by a famous engine
with pump, float is made up of high strength and light weight
plastic.
4). The equipment is small, light weight, easy to assemble, easy to
transport.
parameters for mini portable gold dredger in Stram or river for
gold washing
| Model | 2inch | 3 inch | 4 inch | 6 inch (3+3) |
| Engine power | 5hp@3600rpm | 13hp@3600rpm | 15hp@3600rpm | 13hp@3600rpm |
| Fuel | 284g/kw.h | 270-277 | 389-429 | 270-277 |
| Tank | 2.65L | 5L | 6L | 5L |
| Pump size | 550*450*450 | 660*500*520 | 660*500*520 | 660*500*520 |
| Pipe line | 50mm | 80mm | 100mm | 80mm |
| Pump head | 20m | 27m | 25m | 27m |
| Suction depth(pipe) | 0.5-1.2m | 0.5-3m | 0.5-3m | 0.5-6m |
| Work capacity | 1-7m3/h | 5-12m3/h | 8-17m3/h | 5-24m3/h |
| Sluice box | Stainless | Stainless | Stainless | Stainless |
| Sluice box size | 500*1700 | 600*2000 | 600*2000 | 600*1800 |
| Plastic pontoon | 1600*395*370 *2pcs | 1600*395*370 *4pcs | 1600*395*370 *4pcs | 2400*570*400 *2pcs |
| Nozzle | YZ3-2 | YZ3 | YZ4 | YZ3 |
| Suction pipe | 3 inch | 3 inch | 4 inch | 3 inch |
| Packing volume | 4cbm | 5cbm | 6cbm | 9cbm |
| Price | | | | |
| Free spare | Filter head*1pc Pipe clamps 6pcs
| Filter head*2pc Pipe clamps 12pcs
|
Company Information
1) Our products can design as customers' requirement and
geographical condition.
The products are of a great variety including 800-1500m3/h.
2) We are a modern large-scale mine Small Gold Dredger ral
processing equipment
manufacturer for research and development, engineering design,
producing installation, commissioning and after sale service with
the good CAD Aided Design R & D center
and physical mineral processing laboratory.
3) We attach the development of scientific research, and form
strategic partnership
with the major research institutions. And we had established good
cooperation with
Import and export trading company, established Shandong magnetic
equipment
Research Instituting.
