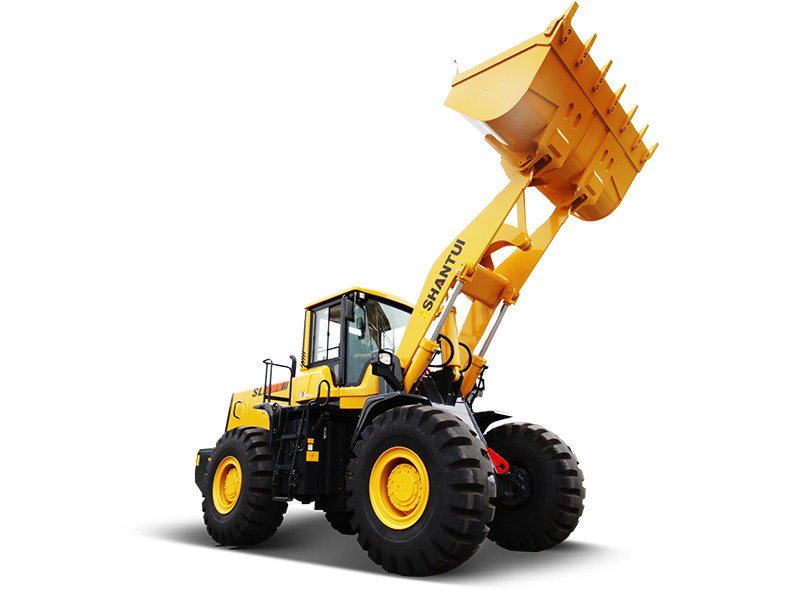

    Shantui Long Arm Wheel Loader 3T 5 Ton 6 Ton Capacity

    Ask Lasest Price
    Brand Name : Shantui
    Model Number : 3ton, 5 ton, 6 ton
    Certification : ISO9000
    Payment Terms : L/C, T/T
    Supply Ability : 50 unit per month
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

    Shantui Long Arm Wheel Loader 3T 5 Ton 6 Ton Capacity

    LW3000 Shantui Long arm Wheel Loader 3 Ton, 5 Ton, 6 Ton Capacity

    Extended ArmLong Arm
    Overall length7170 mm7290 mm
    Overall width2484 mm2484 mm
    Overall height3235 mm3235 mm

    Operating weight10300 kg
    Related loading3000 kg
    Bucket capacity1.7 m3
    Maximum lifting force105 kN
    Static tipping load (full turn)6000 kg
    Dumping height (Extended/Long)3057/3200 mm
    Dumping reach (Extended/Long)906/886 mm

    Engine modelWeichai WP6G125E201
    TypeIn-line, water-cooled, 6-cylinder, direct injection, turbocharged
    Rated power92 kW
    Rated speed2000 rpm
    Displacement6.75 L
    Maximum torque540 N·m
    Minimum fuel consumption217 g/kW·h

    Gear1st2nd3rd4th
    Forward0~7 km/h0~12 km/h0~23 km/h0~37 km/h
    Reverse0~8.3 km/h0~28 km/h

    DRIVE SYSTEMFour-wheel drive
    Gradeability30°
    Maximum traction110 kN

    BRAKE SYSTEM:

    Service brakesAir over hydralic disc brakes on 4 wheels
    Parking brakeManual parking brake

    STEERING SYSTEM:

    TypeArticulated type, full-hydraulic power steering
    Maximum steering angle36° each direction
    The center of outside tire5325 mm
    The center of outside bucket5920 mm

    TIRES

    Type17.5-25 12PR
    Pattern levelL3
    Center distance of tires1856 mm
    Wheel base2700 mm
