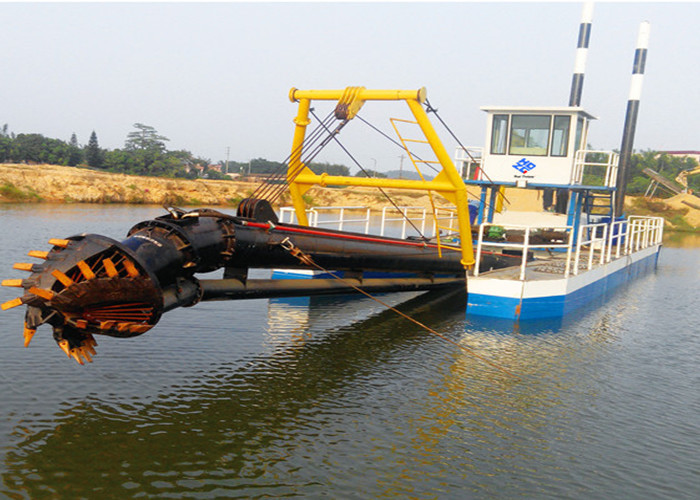

Small Mini 6 Inch Hydraulic Cutter Suction Dredger Low Price Sand Dredge For River Sand Mining

• Product Description of 6 inch small cutter suction dredger machine

Head dredging vessels for a variety of geological structures, it can be widely used in mineral mining, harbor dredging and reclamation. The series dredger absorb advanced technology related products Netherlands and the United States, with a well-designed, all-hydraulic control, simple operation, low maintenance, powerful features.

The 6 inch cutter suction dredger adopts a modular structure and is easy to disassemble and transport. It can be used to dredging in river for sand dredge, gold dredge and sand mining. These features of 6 inch cutter suction dredger include reasonable design, convenient operation, long duration and continuous operation. The cutter suction dredger can be widely used for maintenance dredging, sand mining, infrastructure dredging, environmental protection dredging, etc. The cutter suction dredger parts include head cutter, dredger pump,pipe,main engine,main float, side float,bridge.

The 6 inch cutter suction dredger uses a rotating cutter to squeeze the soil at the bottom of the river or seabed, mix it with cement to form mud, suck it into the pump body through a mud suction pipe and send it to the mud discharge area through a mud discharge pipe. When the cutter suction dredger construction, dredging mud and lose dumping are integrated, their completion, higher production efficiency. It is suitable for dredging in inland rivers and lakes with low wind and waves and low flow velocity and coastal ports. It is more suitable for excavating sand, sandy loam, silt and other soil qualities. It can be digging clay after using a toothed reamer.

• 6 INCH SMALL CUTTER SUCTION DREDGER WORKING PRINCIPLE

The working principle of the cutter suction dredger is that it disintegrates or breaks the cohesion of the soil to be dredged mechanically by this rotating cutter head, with a half dozen 'toothed blades', which vary in size and type depending on the material to be dredged.

• Parameter of 6 inch cutter suction dredger

• ITEM	DATA
  Model	CD-CSD150
  Workload	450m3/h
  Dredging Depth	15m
  Loa(L*W*H)	13*3.2*1.26m
  Suction Diametre	250mm
  Discharge Diametre	200mm
  Cutter Power	25kw
  Main Engine	Cummins/Weituo
  Discharge distance	500m
  Lift	36m

• ---

  Similar Products

• 6inch-20inch cutter suction dredger
  MODEL	Workload	Dredging Depth	Lift	Discharge distance
  csd150	450m3/h	5m	36m	2500m
  csd200	750m3/h	6m	49m	2000m
  csd250	1100m3/h	10m	56m	2000m
  csd300	2200m3/h	12m	57m	1500m
  csd350	3000m3/h	12m	58m	1100m
  csd450	4000m3/h	15m	55m	700m
  csd500	5000m3/h	16m	62m	500m

• Want to learn more parameters and price cutter suction dredger, please contact us.
