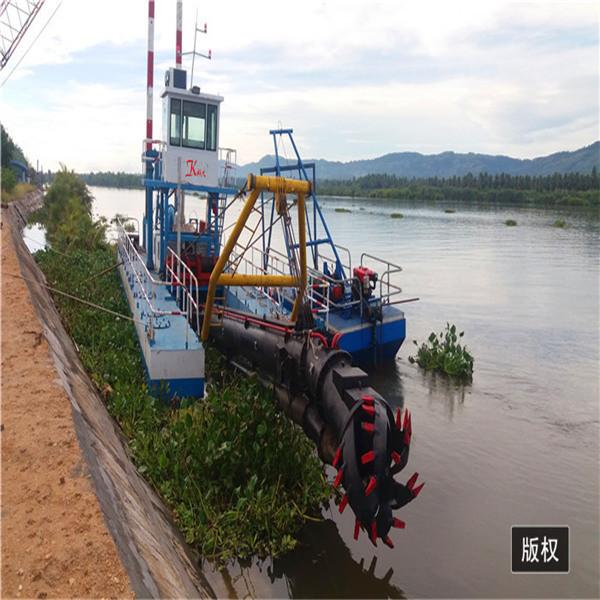

Cutter Suction 800CBM/h 1000CBM/h Sand Mud Dredger Ship Boat Vessel CE BV

CE and BV certification Cutter suction sand Mud dredger/dredge/dredging machine / ship/ boat/vessel

Product Description

*Sand Dredging

*Land Reclamation/Beach Restoration

*Mineral Mining(such as gold mining,iron mining,tin mining etc.)

*Port,Lake,River,Harbor,Channel and Dam Desilting

*Well Head and Location Sweeping

*Canalization

Dredger can be self-propelled or non self-propelled. The hull can
be dismantle and box-like structure. The dismantle type can be
assembly at working place easily and be transported by road,
railway and container accordingly. The sand dredger is very
convenient to install and move in the working place. The power
system of sand dredger can be electric system or diesel engine
driving system according to customers' requirements.

Model	CSD200	CSD250	CSD300	CSD350	CSD400	CSD550	CSD600
Waterflow capacity	800 m3/h	1000 m3/h	1400 m3/h	2000 m3/h	2800 m3/h	3600 m3/h	5500 m3/h
Dredging depth	8m	10m	12m	14m	15m	18m	20m
Discharge distance	500m	800m	1000m	1200m	1500m	1800m	2000m
Power	248kw	336kw	559kw	795kw	894kw	1341kw	1600kw
Operation system	Hydraulic PLC	Hydraulic PLC	Hydraulic PLC	Hydraulic PLC	Hydraulic PLC	Hydraulic PLC	Hydraulic PLC
Loading	Container	Container	Container	Bulk ship	Bulk ship	Bulk ship	Bulk ship

Cutter Suction 800CBM/h 1000CBM/h Sand Mud Dredger Ship Boat Vessel CE BV

WHY choose CSD sand suction dredger

One man operation. The most advanced Siemens PLC control system.

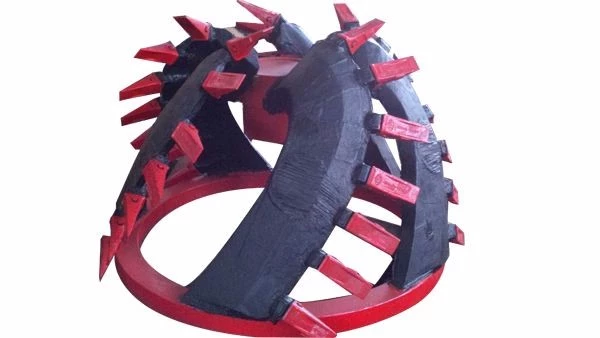

New highly effective cutter driven system
Reliable fully hydraulic system.
Fresh water cooling system.
Completely assembled and fully tested before delivery.
Very simple and fast assembly with experienced engineers.
Standard design, allowing short delivery times.
Standard spare parts available from stock.
Optional equipment available.

Sand suction details

Pontoon for the Cutter suction dredger

The dredger pontoon is with dismantle type and box-like structure,
In order to transported convenient by truck, easy installation
at working site.
And it is sandblasted and painted by 4 layers of marine epoxy paint
suitable for saltwater service.The Zinc anode can be used to
give better anti-corrosion function.

Engine for the Cutter suction dredger

Cummins Engine is global warranty,spare parts can be available in
short time.
Environmental protection and Energy conservation
The main engine driven the dredge pump and auxiliary engine drives
hydraulic system including cutter,swing winches,ladder winch
and the spud rams etc. And the emergency genset supplies
electricity for lighting and emergency use when the dredge doesn’t
work.

Pump for Sand Cutter suction dredger

Shijiazhuan Pump adopt advanced woma technology.
1.Structure good,WN dredger pump adopts semi double shell
structure, which reduces unnecessary auxiliary structure and
process
structure.
2.Advanced hydraulic model, the efficiency is high. The efficiency
of the WN mud pump is 2-3 percentage point higher than before.
In this way, lower energy consumption can be achieved at the same
output.
3.Good wear resistance with long life.

Also can install Imported Original Pump from Abroad.

Hydraulic system for the Cutter suction dredger

An integral hydraulic system includes hydraulic cutter head,
hydraulic winch, hydraulic pump, hydraulic valve manifold, solenoid
valve, hydraulic pipes, hydraulic components, electrical actuator
and so on.
The hydraulic system requirements are very high and strict, it is
the main artery of the entire dredger. The swing winches,lifting
winch and cutter head are all driven by separate hydraulic motors.
The spud cylinder is hydraulic powered to lift spuds, the alternate
swing of spuds will move the dredger.

Be self-propelled for the China Made Cutter Suction Sand Dredger In Bangladesh

Some dredgers do not have navigation capability, and they are
always driven by tugboats

Keda dredger can be with the function of self-propelled, then easy
to move for work.
