14 Inch Cutter Suction Dredger CSD150 For River Dredging
1. Description of 14 inch cutter suction dredger
The 14 inch cutter suction dredger uses the rotating reamer to
loosen the soil at the bottom of the river or the seabed, mix it
with cement to form mud, suck it into the pump body through the
suction pipe and send it to the mud discharge area through the mud
discharge pipe.
During the construction of the cutter suction dredger, dredging,
transporting and unloading are all integrated and completed by
themselves, and the production efficiency is high. It is suitable
for dredging in inland rivers and lakes and coastal ports with
small wind and waves and low flow velocity. It is more suitable to
excavate sand, sandy loam, silt and other soils. After using a
toothed reamer, the clay can be excavated.
2. Parameter of 14 inch cutter suction dredger
| 14 inch Cutter Suction Dredger |
| ITEM | DATA |
| Model | CD-CSD350 |
| Workload | 3000m3/h |
| Dredging Depth | 12m |
| Loa(L*W*H) | 34.5*7*2m |
| Suction Diametre | 540mm |
| Discharge Diametre | 510mm |
| Cutter Power | 88kw |
| Main Engine | Cummins/Weituo |
| Discharge distance | 2000m |
| Lift | 58m |
Our dredgers are customized products, which can be designed and
customized according to customer needs

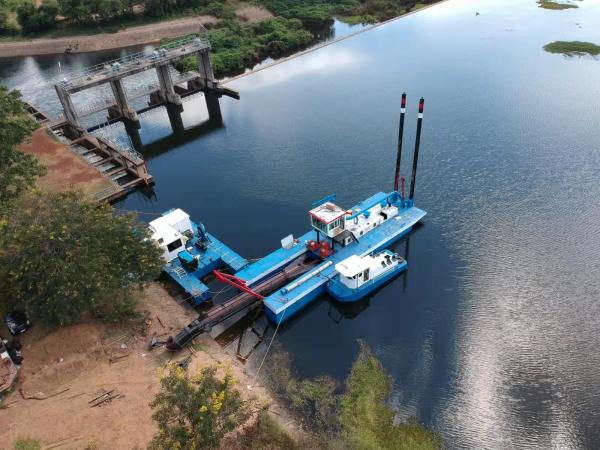

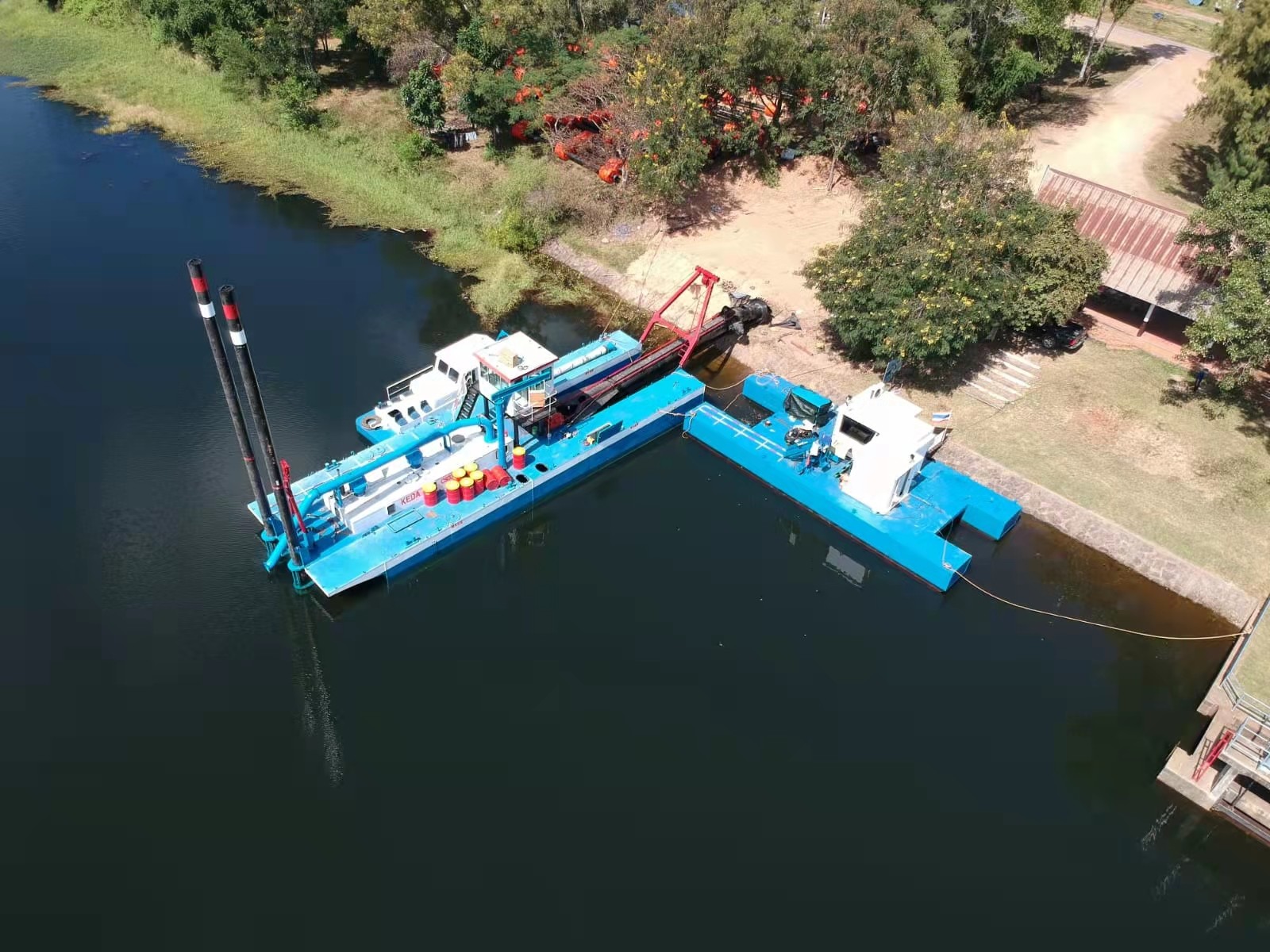

3.Detailed part pictures of 14 inch cutter suction dredger
4. Why choose us ?

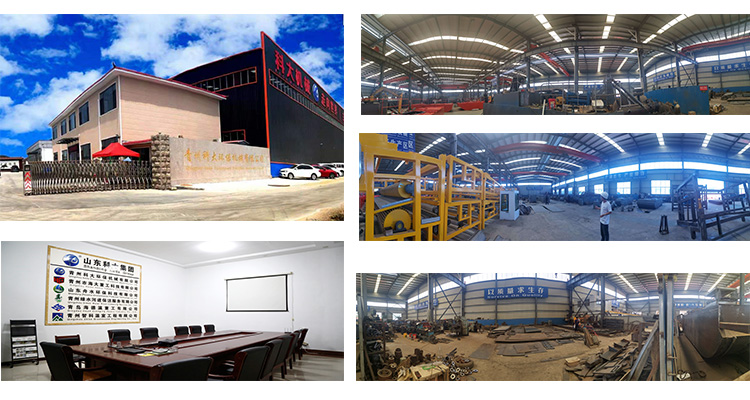

Qingzhou KEDA Environment Proctection Machinery Co., Ltd
1).More than 10 years of production experience in dredgers and
mineral processing equipment
2).Strong technical service team, can provide customized services
3).Own design team with 21 patents
4).Industry and Trade Integration Enterprise
5).The factory covers an area of over 22,000 square meters
6). 3 production lines-dredger-cleaning boat-gold mining equipment
